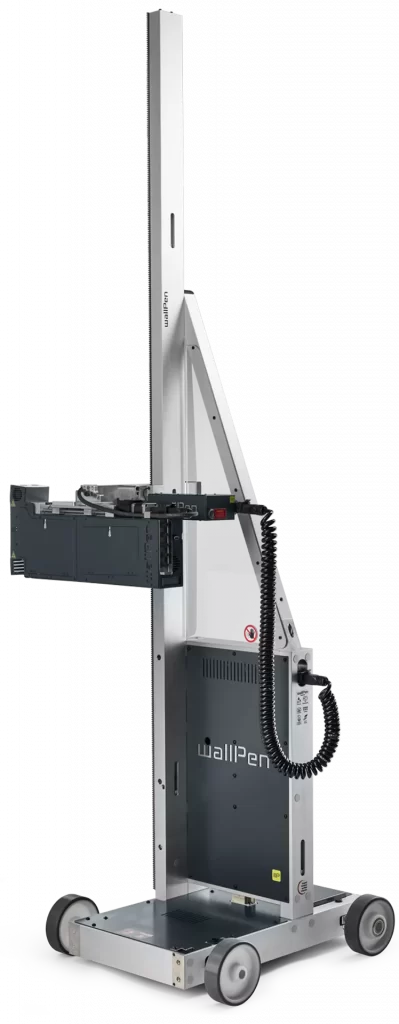

wallPen OVERVIEW
100% Manufactured in Wissen, Germany

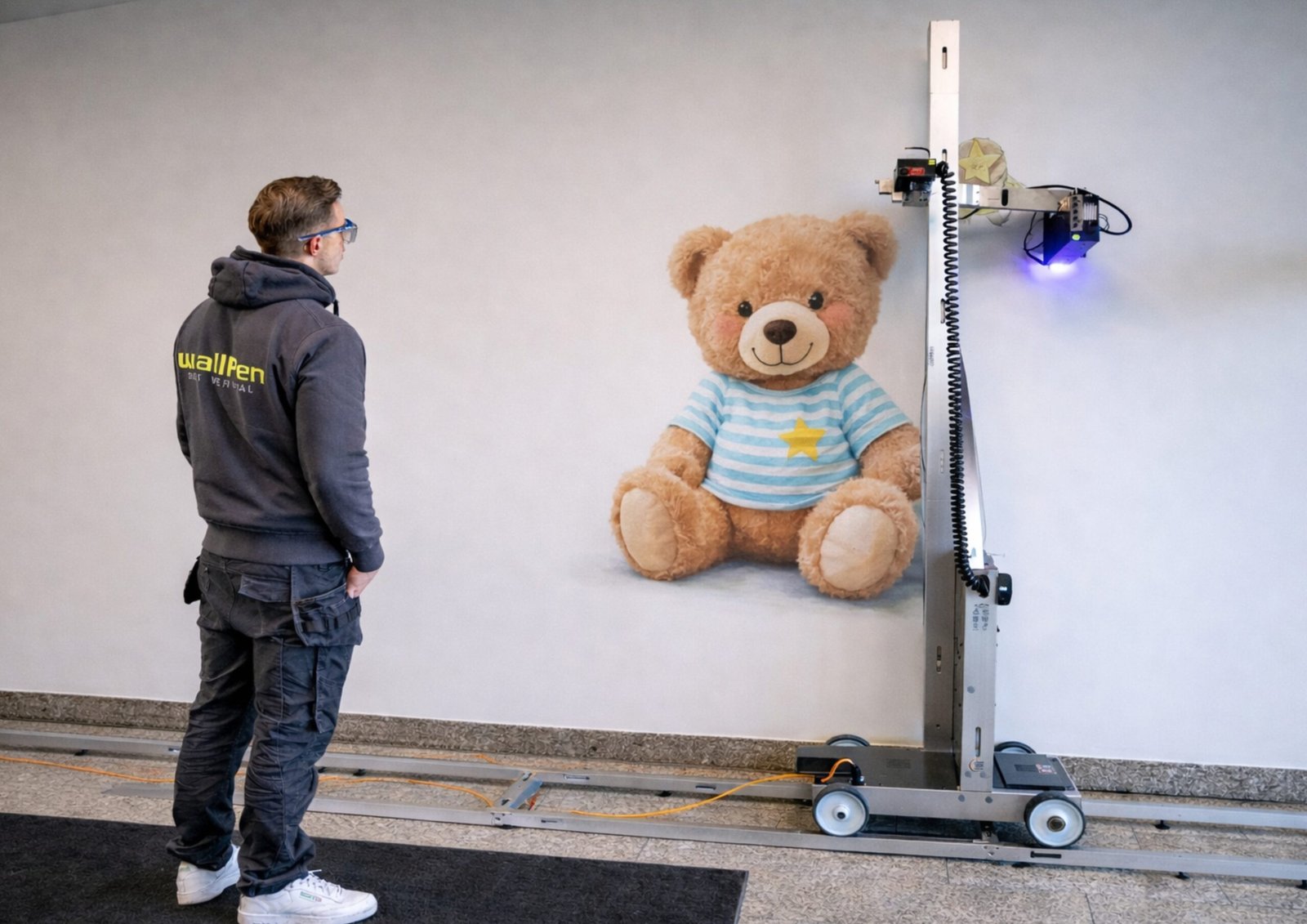

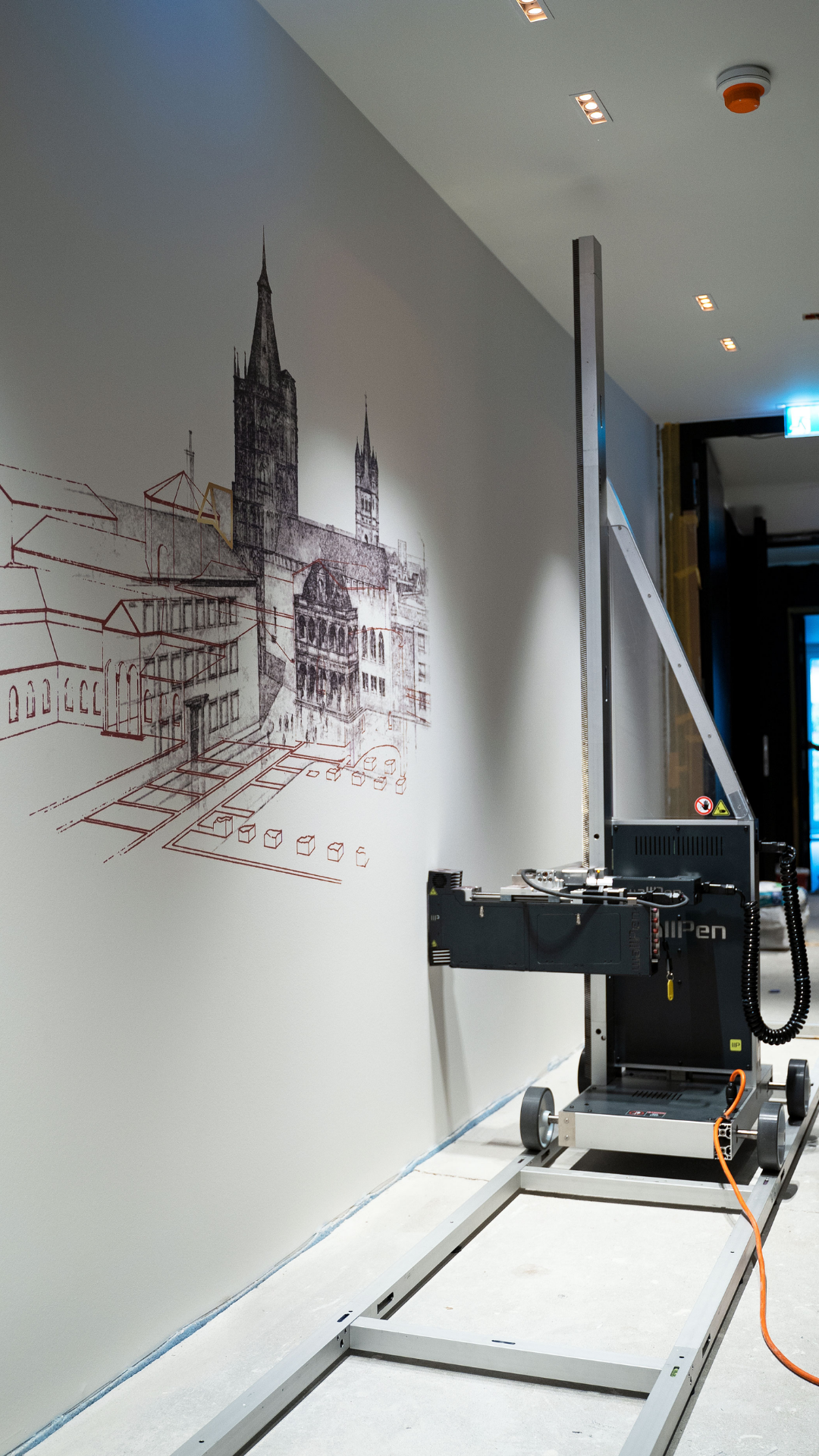

Designs high-precision direct to wall UV printers for vertical surfaces
Industrial German Engineering
Reliable, precise, built for commercial use

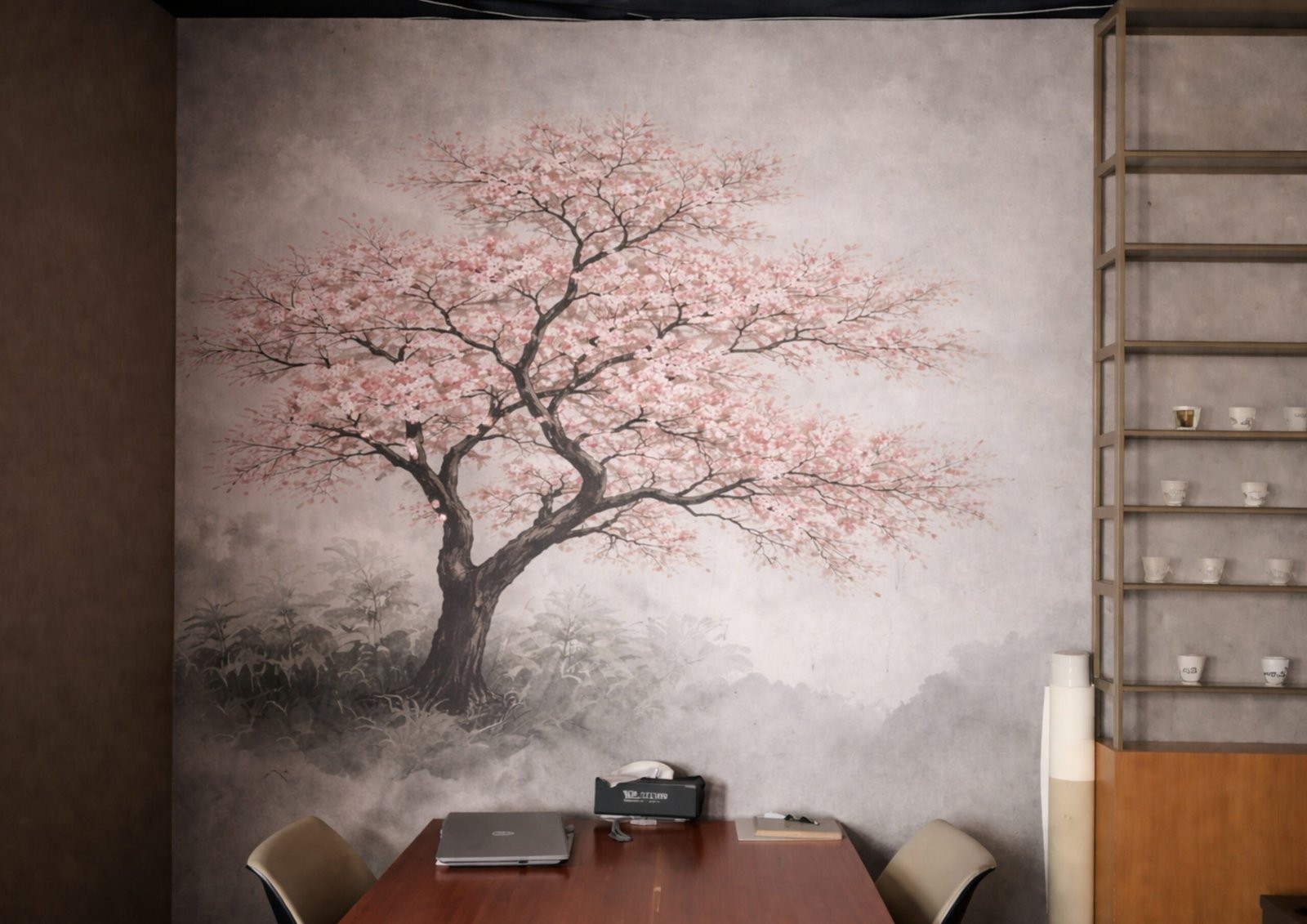

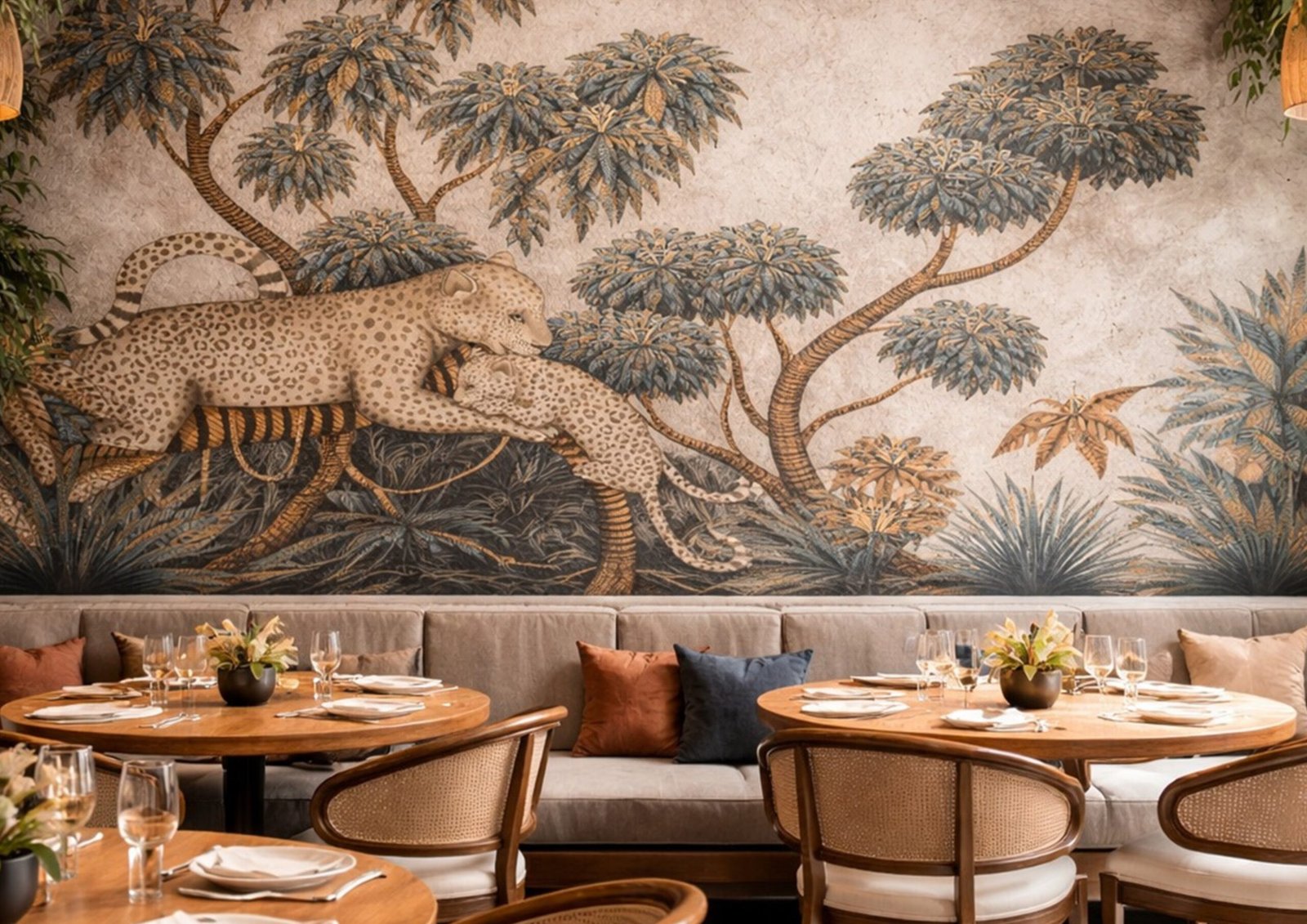

Direct to Wall UV Printing Applications

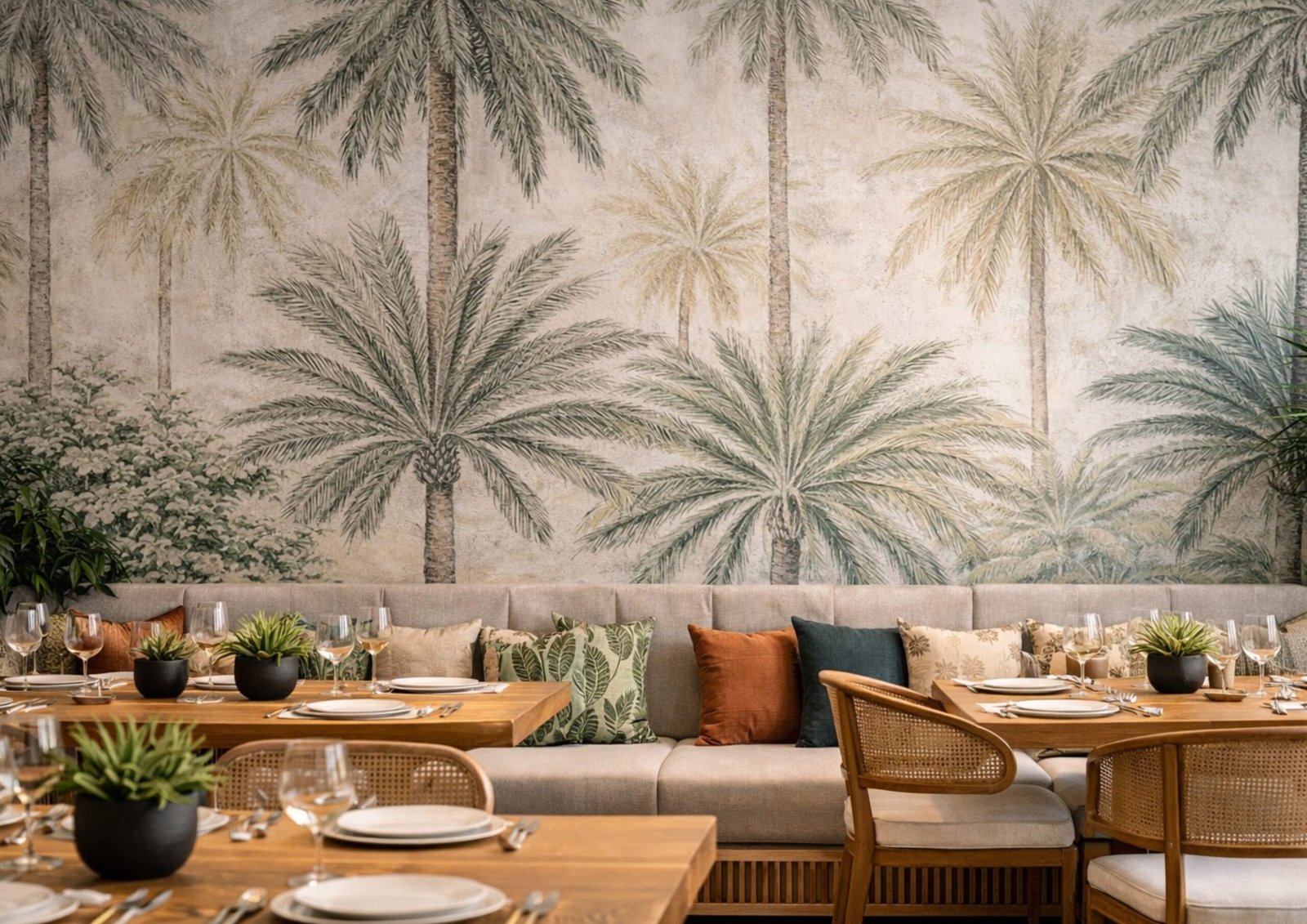

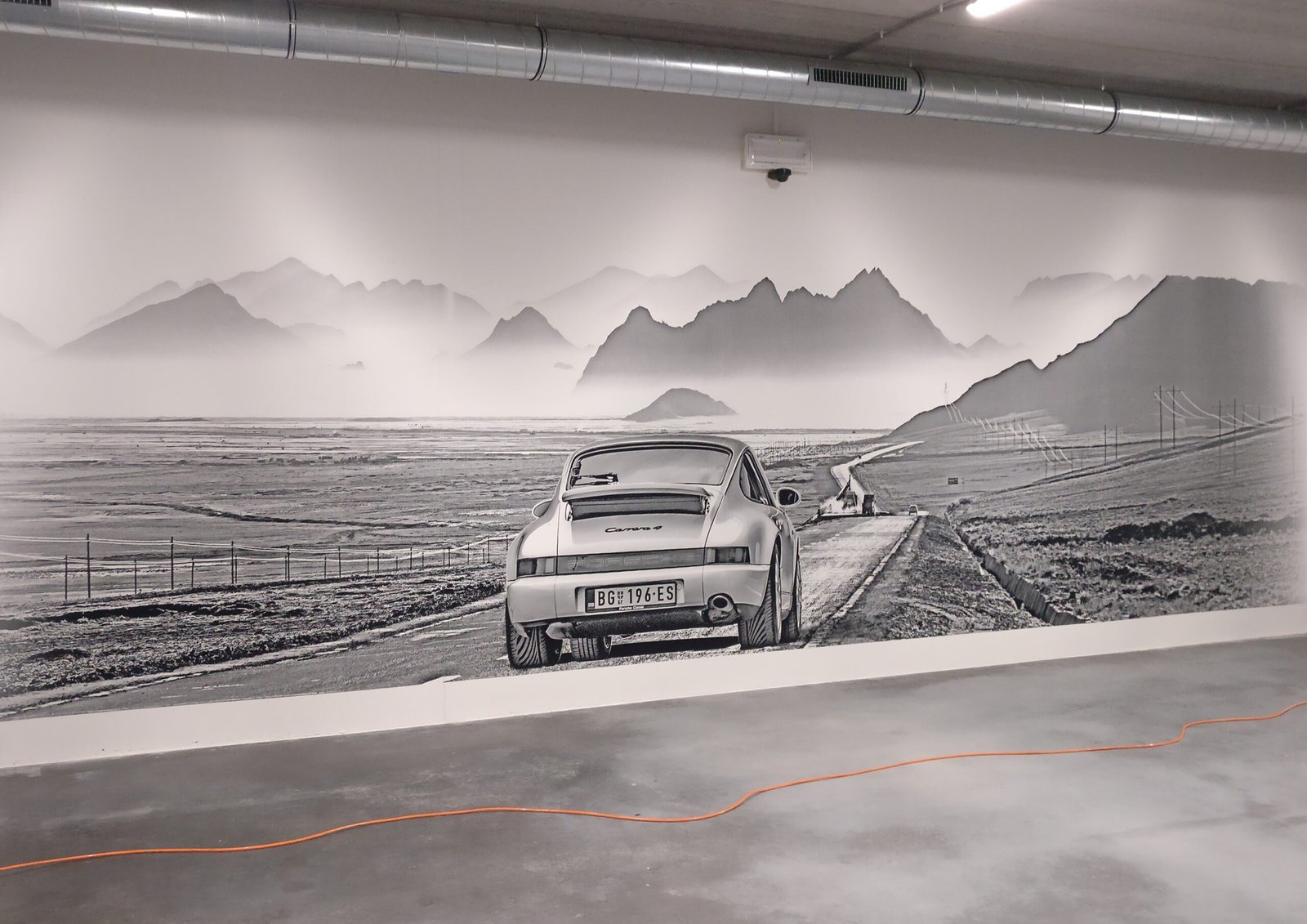

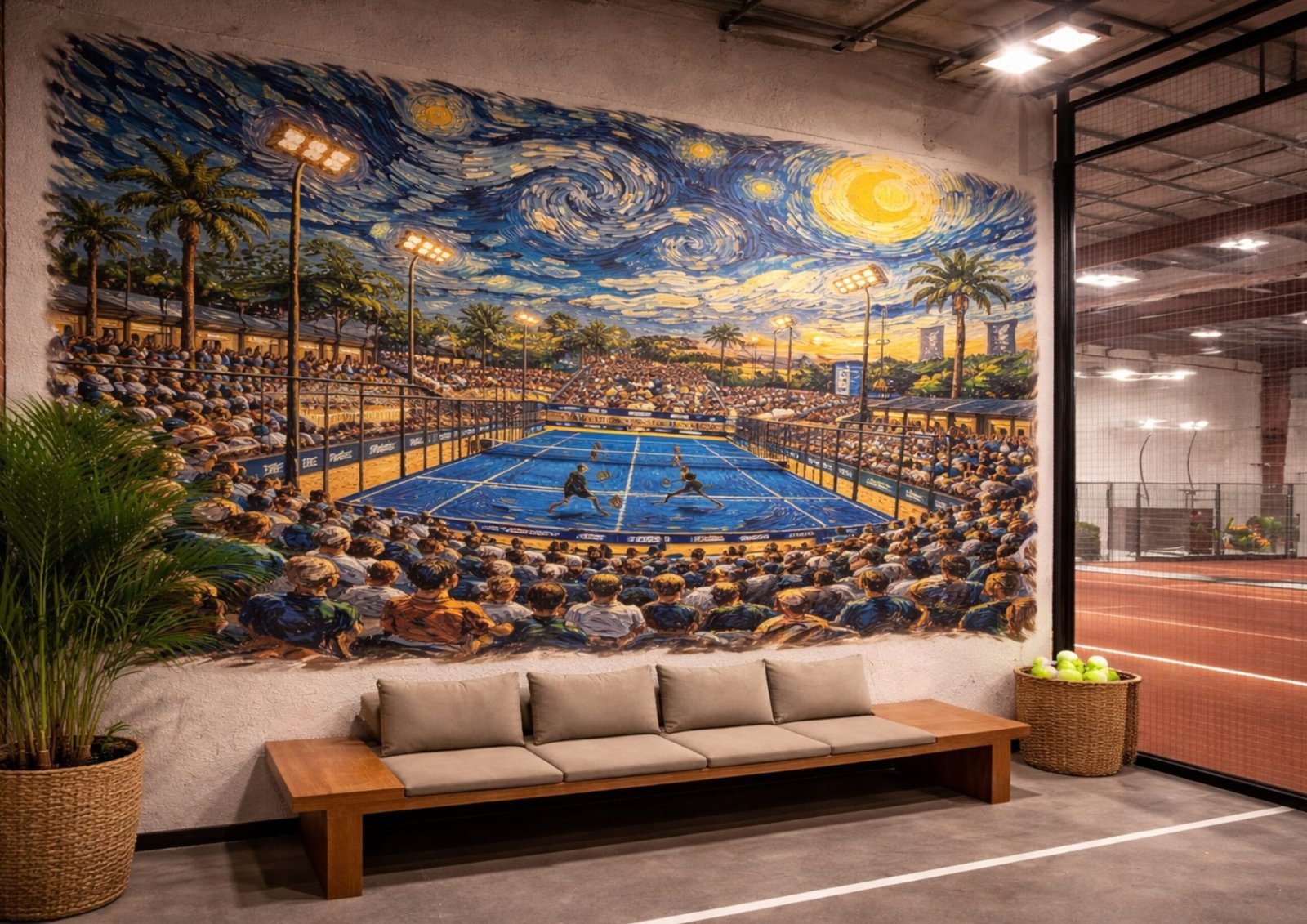

Interiors, branding, retail, hospitality, offices
MACHINE & INKS OVERVIEW
- Vegan ink made in the EU
- Non flammable
- One device for all surfaces
- Indoor prints are durable for at least 12 years

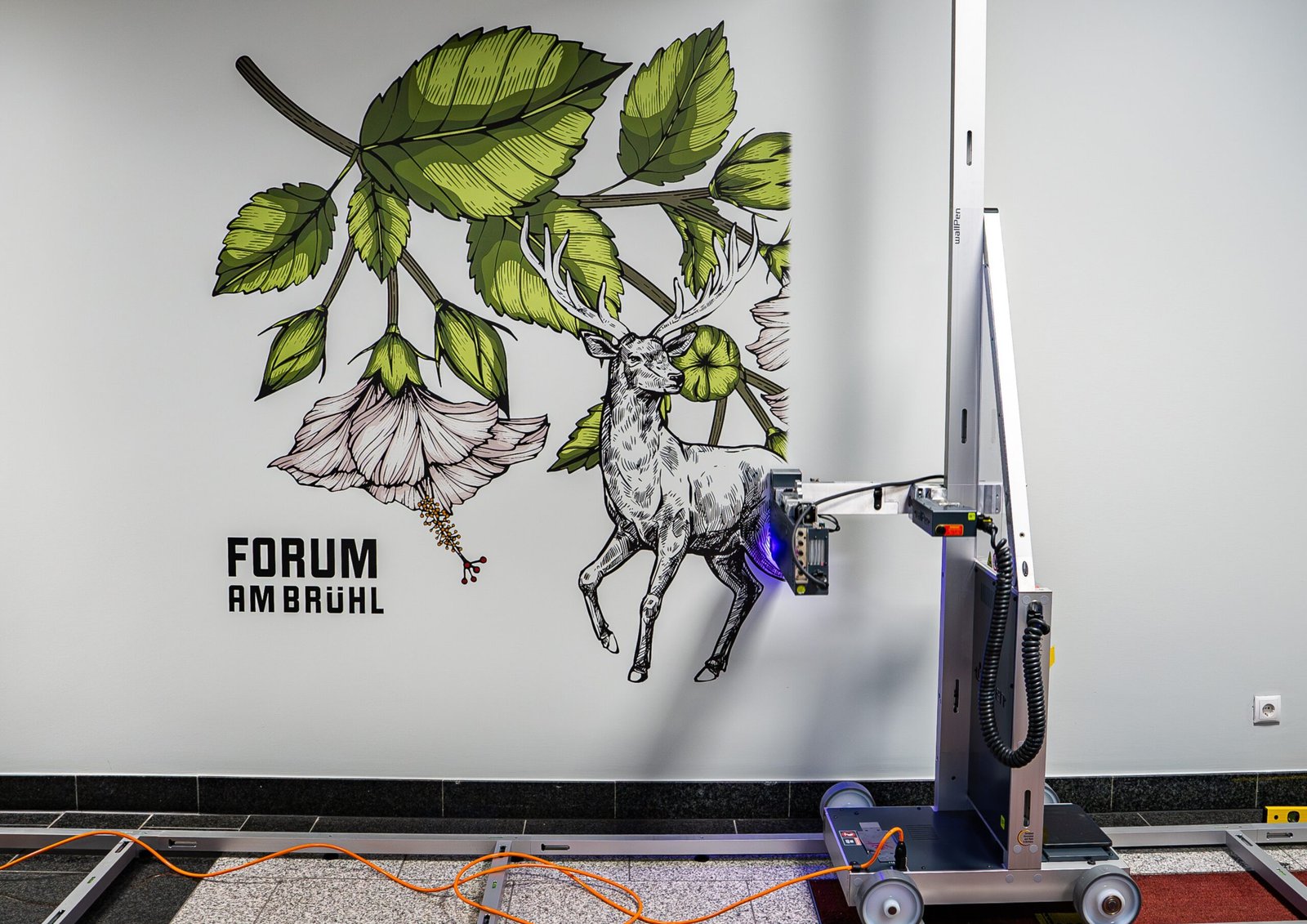

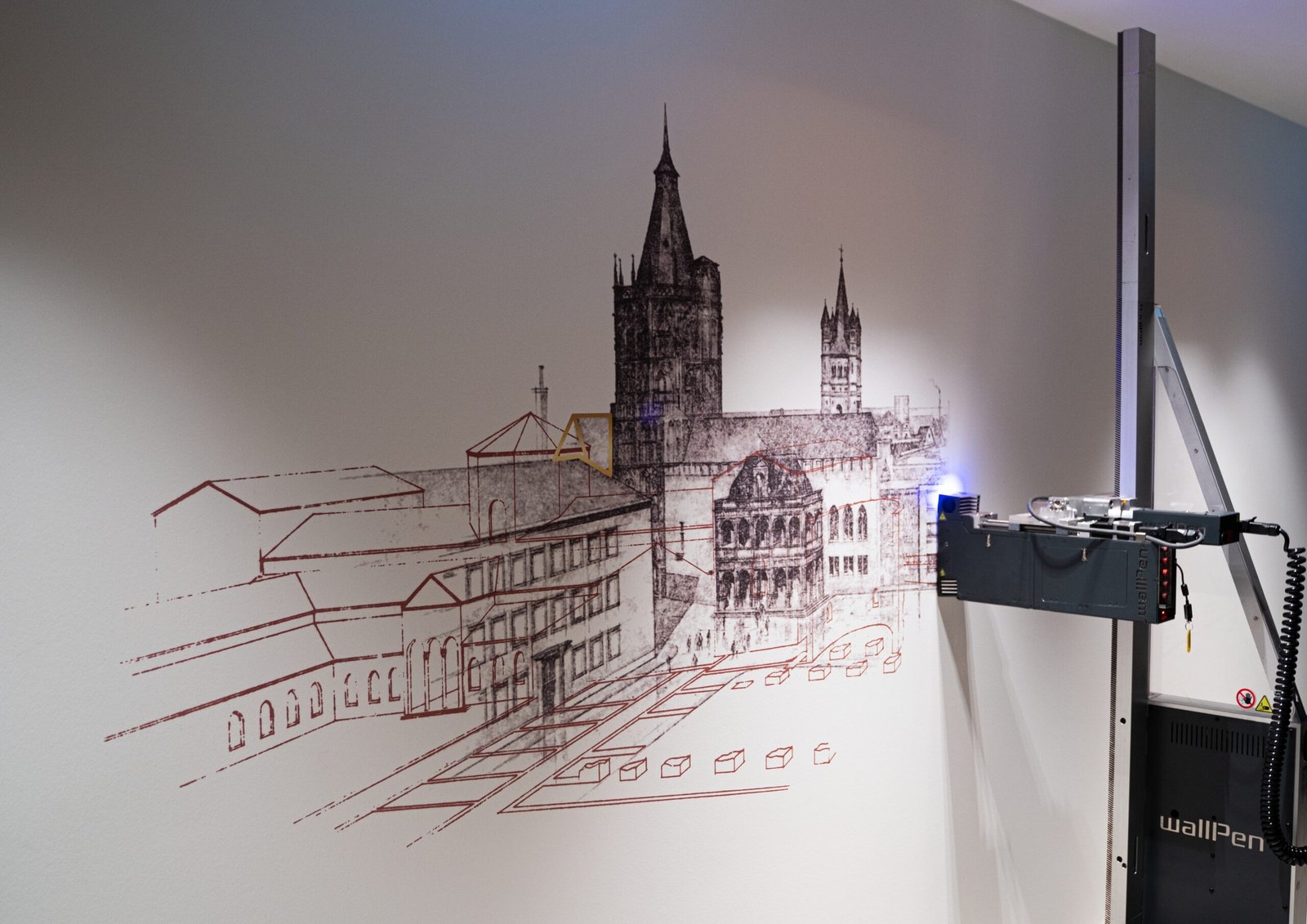

- Direct print on the wall
- CMYK + W colors
- Scratch and abrasion resistant
- 12 years indoors
- True color results thanks to ICC profiles
- Waterproof and solvent resistant
- Prints on rough surfaces
- Unlimited width & maximum print height 4m
- Almost all surfaces printable
- One ink for all surfaces*
PRINTING SIZE
MATERIALS COMPATIBILITY
The wallPen® prints on almost anything.*
*If necessary, the respective printing substrate must be pre-treated. Each material should be tested before printing.
FAQ
Setup can take 30 minutes (if done alone)
Printing speed ranges from 2 to 16 square metres per hour, depending on the wall surface complexity (e.g., flat or curved), number of passes, resolution (DPI), and artwork size.
- On glass with a ceramic hob scraper or razor blade. Otherwise, a print can always be painted over in two or three layers.
- Wood must be sanded or with metal or concrete sandblasting or glass bead blasting.
- The UV inks are produced in Europe, the inks are ISO 9001-2015 certified, vegan and do not contain solvents or thinners.
- The inks are ideal for wall printing because they cure within milliseconds and are instantly scratch and abrasion-resistant.
- As it is sterile and abrasion-resistant, walls in children’s rooms, doctors’ surgeries and historic preservation areas can also be printed without any worries.
- Yes, within reason, the ink dries within milliseconds and is abrasion resistant, waterproof and solvent-resistant.
No. WallPen can print on smooth and textured walls.
Yes. The printhead has a laser system that automatically adjusts the distance from the wall.
Yes. Surface preparation depends on the material. We guide and supply the correct pre-treatment when needed.
Indoors, prints can last 12+ years when proper surface preparation is followed. For outdoor applications, UV resistance is typically around 2 years depending on the material; however, this lifespan can be significantly extended often to over 5 years by applying a transparent UV protective coating.
Yes. The prints are odorless, abrasion-resistant, and safe for homes, children’s rooms, hospitals, and public spaces.
A normal power plug, Standard single phase socket required and the machine comes with a 12-meter cable.
The wallPen supports a wide range of file formats including TIFF, JPEG, PDF, AI, and PSD. File preparation is straightforward and user-friendly, requiring only minimal design experience, and we provide a clear step-by-step guide to ensure a smooth process.
Indoors, prints can last 12+ years when proper surface preparation is followed. For outdoor applications, durability typically exceeds 2 years with the right surface preparation, ensuring reliable performance in varying conditions.

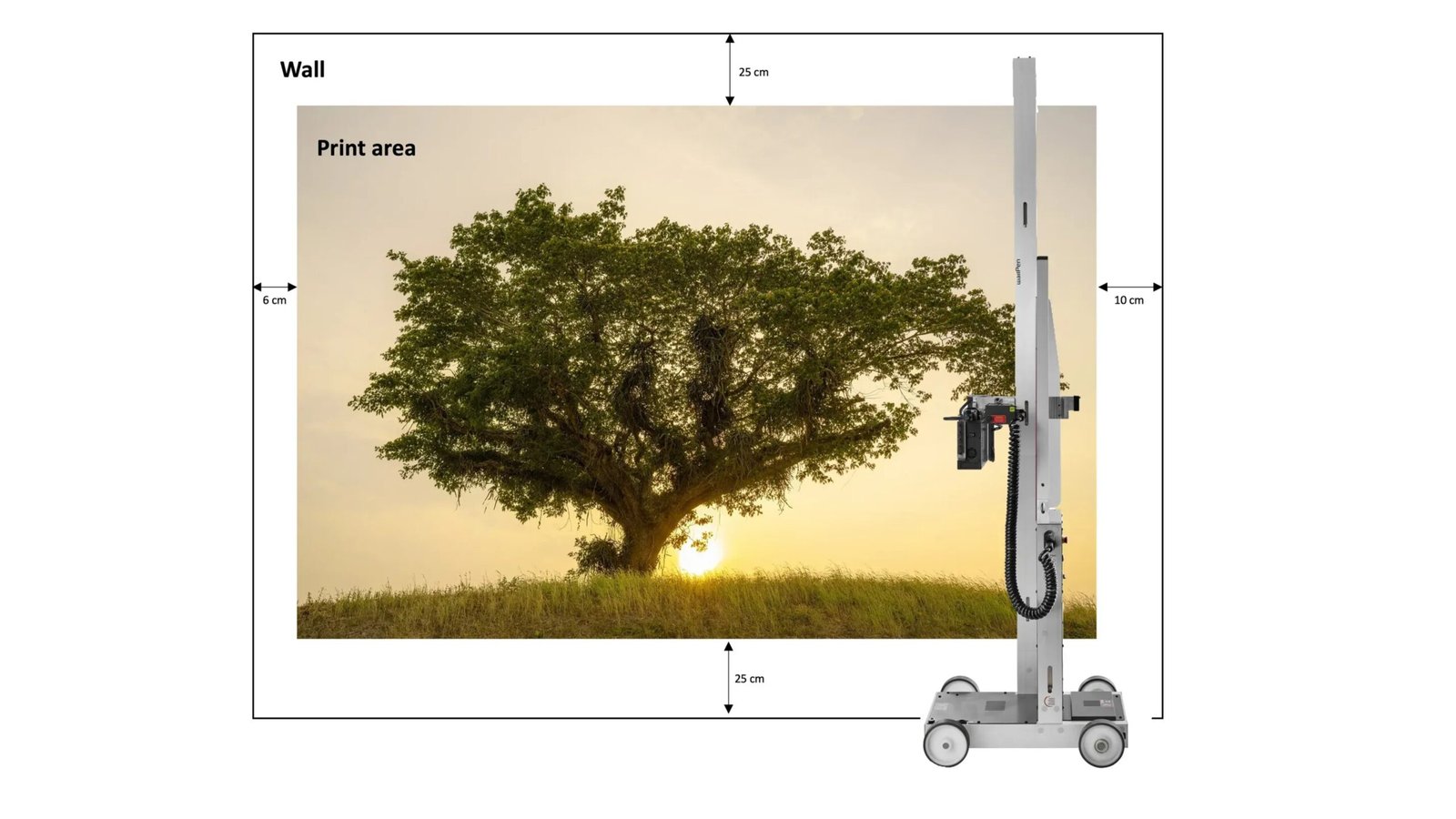

The printer requires 6 cm of space on the left, 10 cm on the right, and 25 cm clearance at both the ceiling and floor. On open walls, there are virtually no size limitations; however, if there are adjacent walls or obstructions on the sides, top, or bottom, this minimum clearance is needed to ensure proper operation.
